Vehicl Car 360 3D Around View Monitor AVM System Surveillance Panoramic Outdoor Camera Video DVR Recorder for Jeep Cherokee

Vehicl Car 360 3D Around View Monitor AVM System Surveillance Panoramic Outdoor Camera Video DVR Recorder for Jeep Cherokee
  • Продавецwww.kansascitychiefsvsoaklandraiders.us
  • Список ценUS $566.50piece
  • Продажная ценаUS $566.50piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,5 (338)

Oписание продукта



Podofo 3D 360 Degree HD Surround View Monitoring SystemDriving With Bird View Panorama 4 Car camera 1080P DVR Recorder G-Sensor

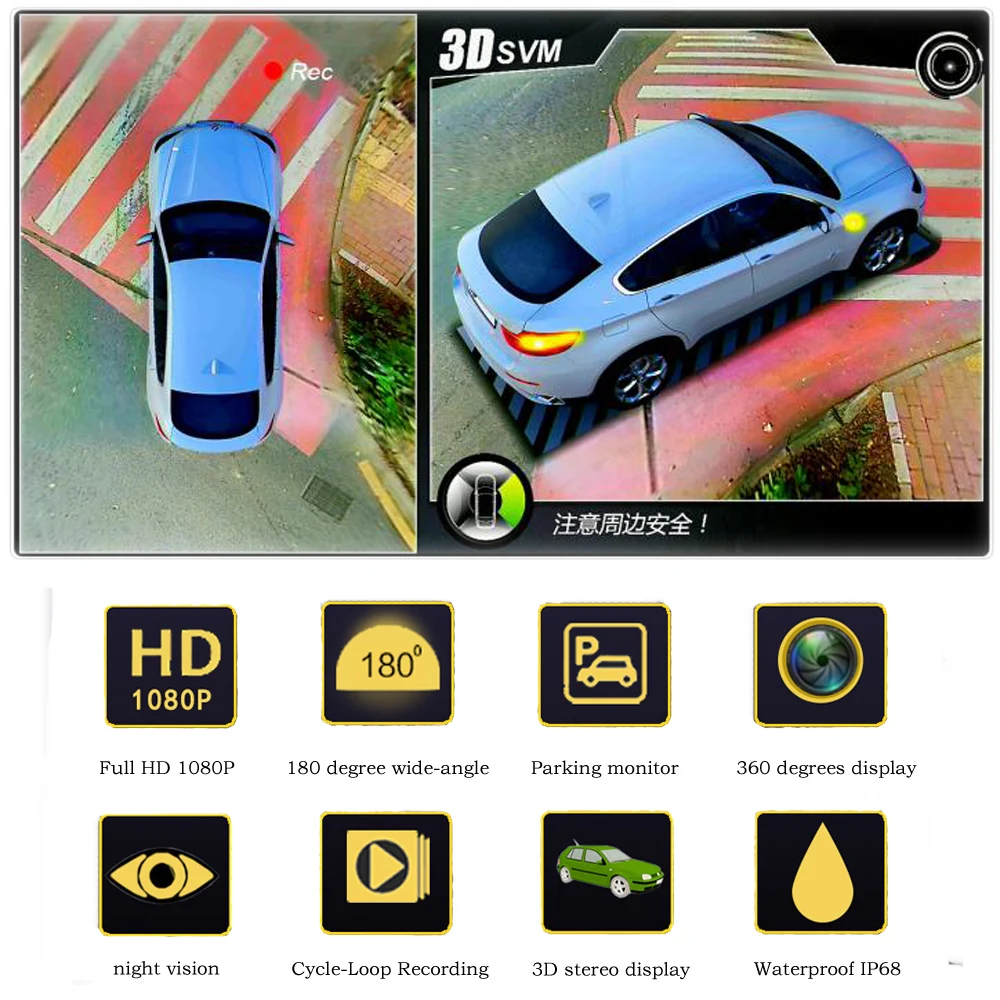

The SVM 3D Around View Monitoring Technology synthe-sizes images from four cameras to create a true 3D sophis-ticated view of a vehicle\'s surroundings. The technology enables flexible omni-directional monitoring around a vehicle from a dynamically definable perspective or "free eye point." Such kind of technology can display the complete vision of the positioning and moving path of the vehicle, it covers blind spot and thus works perfectly as a safe parking and driving guide even when restricted by adjacent vehicles and objects, parking line, etc. The system offers various SVM system configurations like -HDMI/L-VDS/AV with alternative version of 2D or 3D, and what’s more, this system also integrated full channel car DVR function with 24 hours videos loop recording supported.
SS

1.It can clearly and truly show your car\'s driving condition, you can see any part of your car\'s position, make your driving easy and safe.
2.You can choose a different angle to view your car\'s surroundings, and it automatically switches the view when you turn and reverse.
3.When you are driving,it can record four cameras for HD 1920X1080 video ,In the parking lot, when the car encounters vibrations, it will start the camera to record the video.
4.The product does not include the display, it has an connector, you can connect your DVD, navigation, monitor, It has AV OUT, VGA.HIMD interface.
5.The system has 5 car models to choose from, which can simulate most cars.
6.If you want to know more detailed information, please contact us, we can send the user manual and installation debugging video link to you.

2

-2

0302

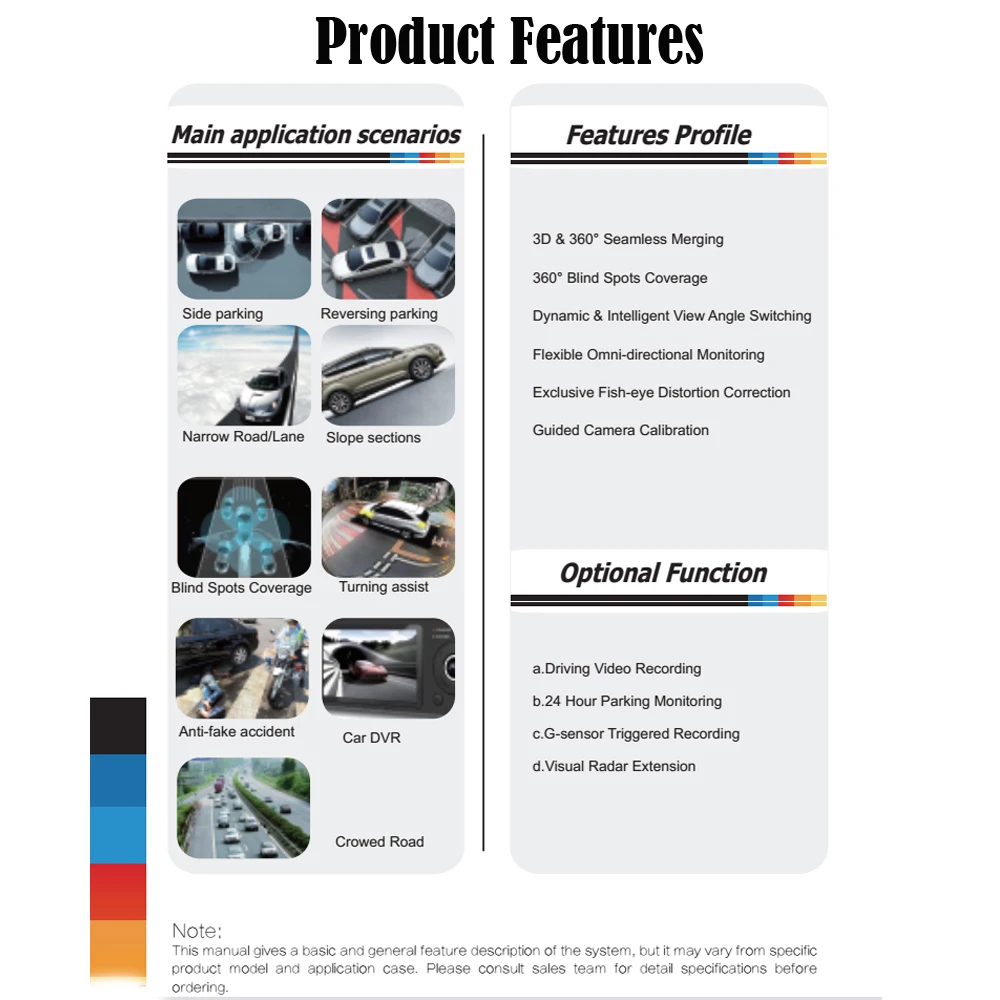

Features:



  • Four 180 degrees ultra wide fish-eye cameras
  • Seamless video merging based on dual core ARM CPU and hardware high efficiency acceleration engine.
  • Arbitrary and dynamic 3D mode view angle switching for better surrounding environment observation
  • Independent Fish-eye calibration parameter and algorithm for each camera.
  • Pixel statistic engine for brightness balance among four chan-nels real-time outsude cameras.
  • 3D video de-interlacing and noise reduction technology for CVBS signal decoding.
  • Support alternative recording media for TF card and USB disk
  • The simplest calibration steps with calibration tape and packing box,and system applicable for almost all types of vehicle which including Buses, Trucks, Lorries, Limousines, Tank and even Jumbo Jets. Typical length of the vehicle is 5.5m, 6.5m.
  • Smart power managements to save automobile’s battery
  • High video recording resolution up to 1080p
  • OE quality for main chipset with well protected circuit and devices in order to achieve the best system performance and stability.

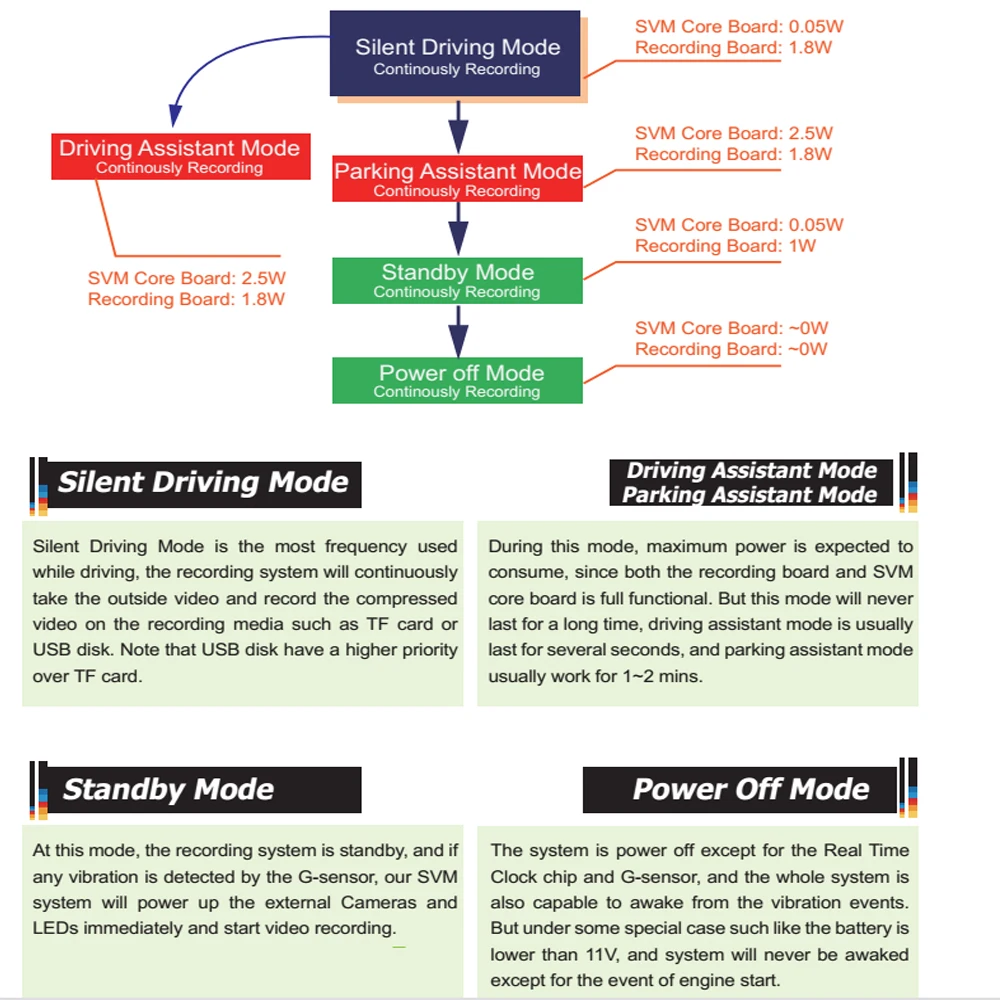

Smart Power Management Strategy

Smart Power Management Strategy



7

01

0

000

-7

-9

-11

-13

010

Package Included:

  • 1 x Car DVR Host
  • 1 x Front Camera
  • 1 x Rear Camera
  • 1 x Left Camera
  • 1 x Right Camera
  • 1 x Remote Controller
  • 1 x Main Wire Herness
  • 1 x Front Extend Cable
  • 1 x Rear Extend Cable
  • 1 x Left Extend Cable
  • 1 x Rigth Extend Cable
  • 1 x Drilling Bit
  • 1 x IR Receiver
  • 1 x Calibration Tape
